High Voltage Impedance Analysis
Electrochemical Impedance Spectroscopy (EIS) Impedance measurement of the entire HV-Battery or HV-Powernet up to 950V
Electrochemical Impedance Spectroscopy (EIS), a frequency-based stimulus-response technique, delivers deep insights into the internal behavior of high-energy systems, making it essential for early fault detection, degradation analysis, and state-of-health monitoring in batteries and fuel cells.
Unlike conventional equipment, HV BODE’s High Voltage EIS Test Systems are designed to meet the demands of modern e-mobility. They enable precise impedance and phase measurements on entire battery packs and BEV systems up to 950 V, currently unmatched in the market.

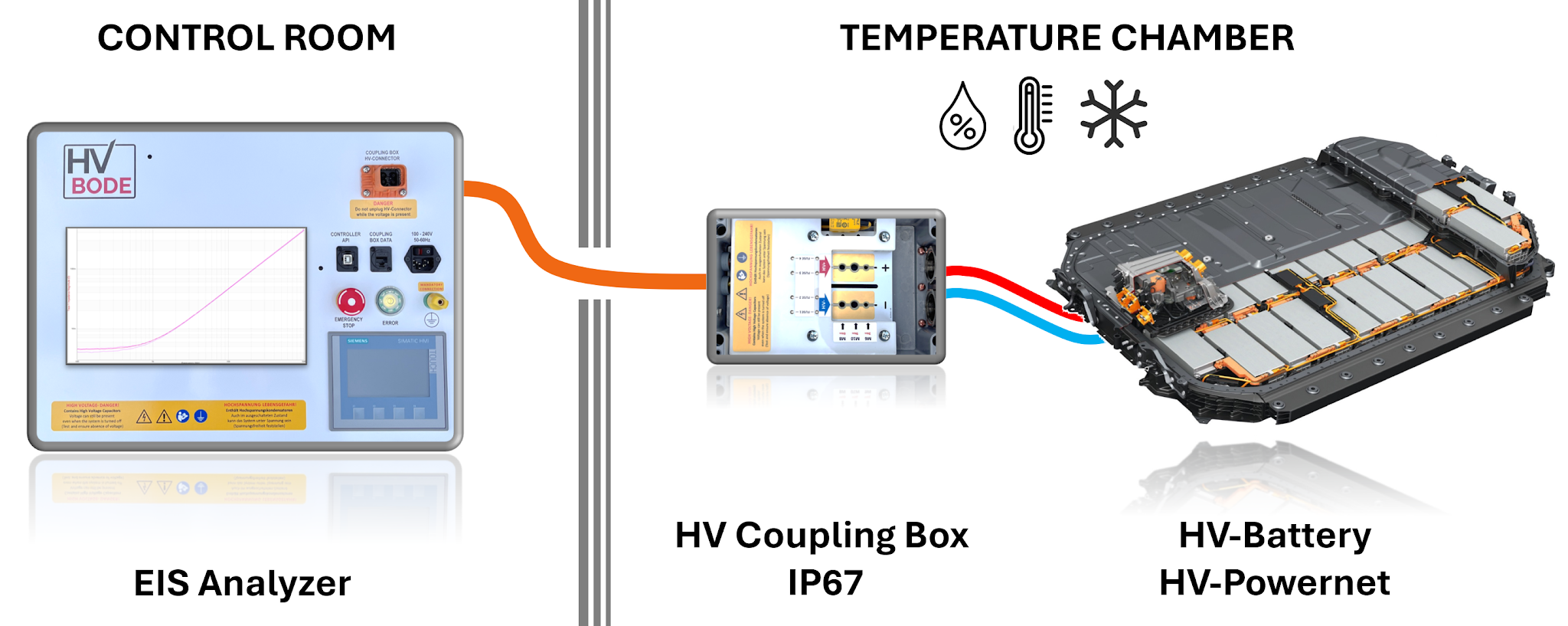

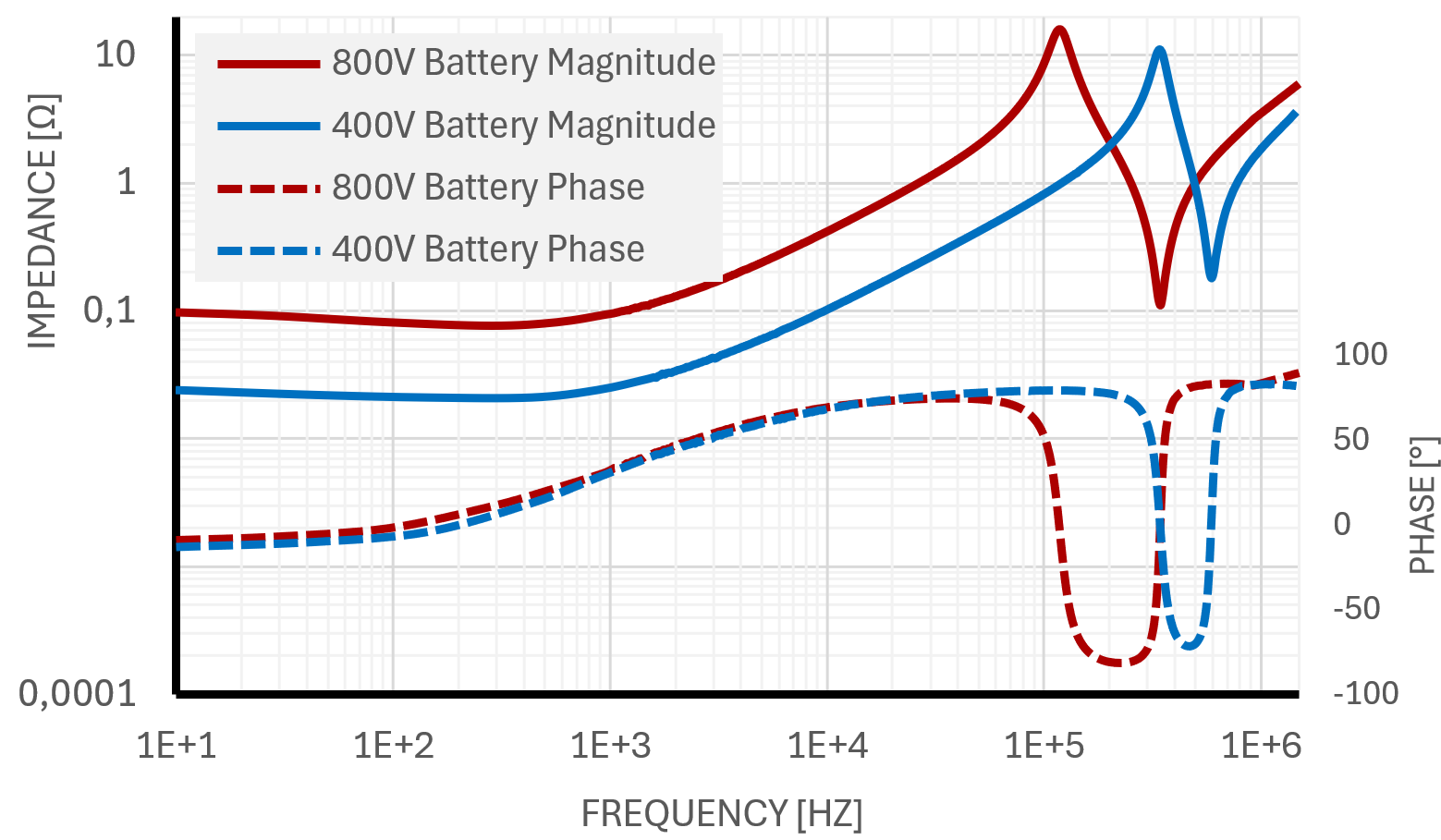

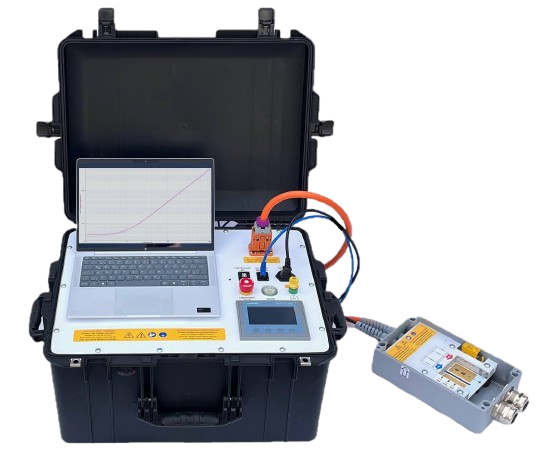

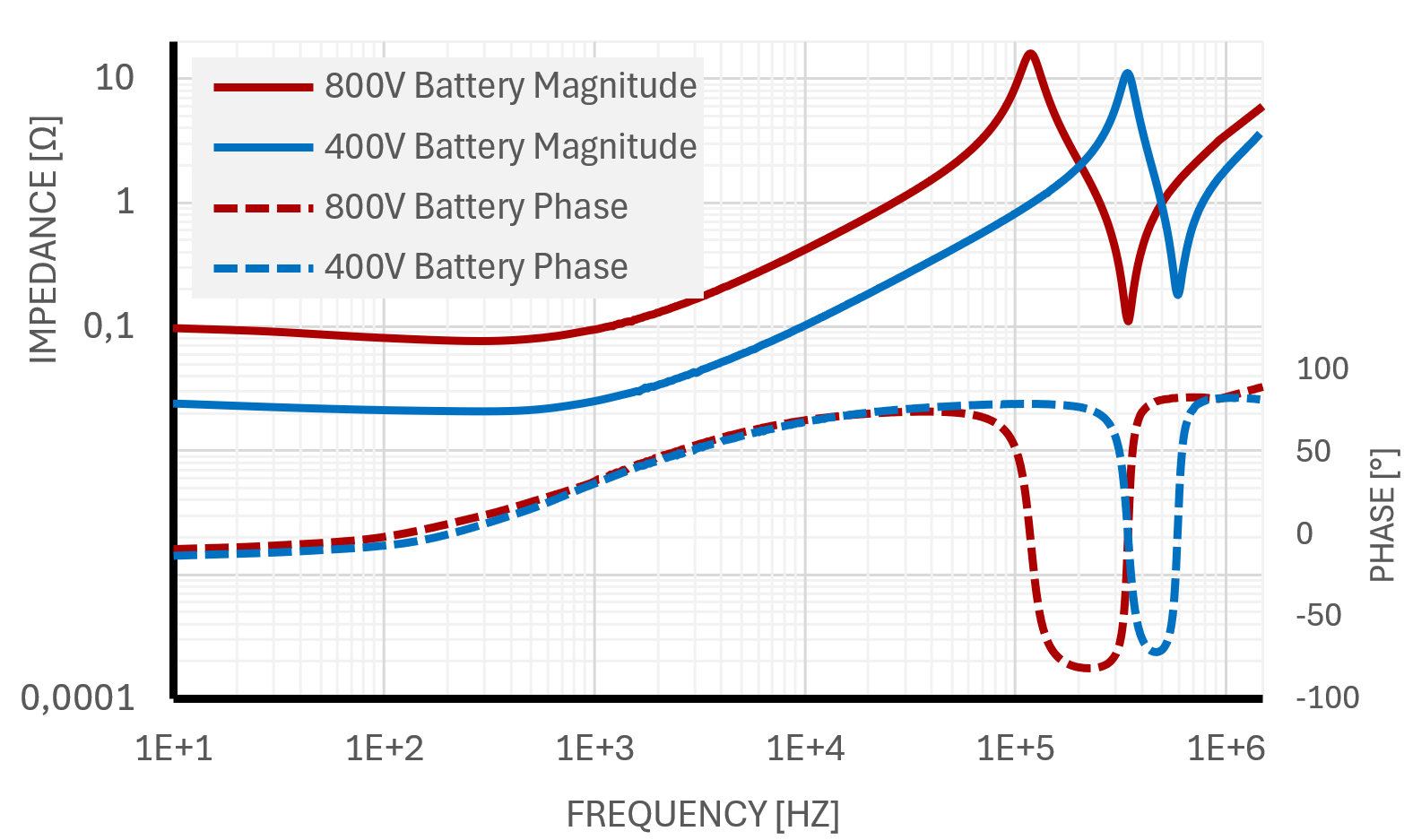

HV-Battery Impedance & Phase

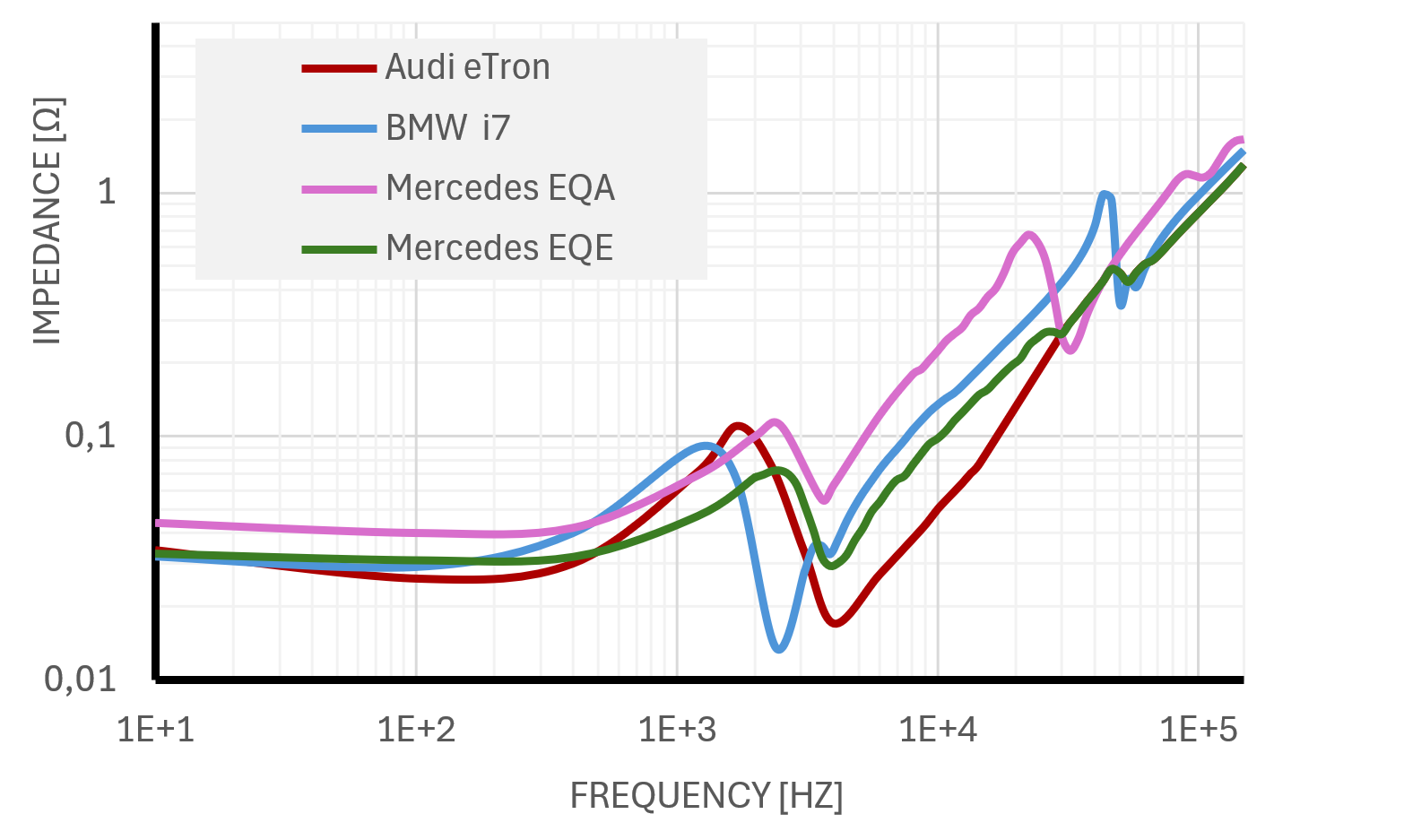

HV-Powernet comparisons
Technical Data
| Offset Voltage | Max. 950 V |
| Bandwidth | 10Hz – 1MHz |
| Impedanz | 1mOhm – 10kohm |
| Size / Weight | 50 x 40 x 33 cm / 15 kg |
| HV Grounding | Isolated grounds (IG) |
| HV Norms | DIN EN 61010-1 |
Key Features
High Voltage Testing
Industry-leading testing capabilities up to DC 950V
EV Compatible
Specifically designed for BEV & PHEV applications
Portable Design
Lightweight & mobile for flexible testing scenarios
Advanced Visualization
Comprehensive plotting including Magnitude, Phase, Polar, and Nyquist diagrams
Flexible Integration
Use as standalone measurement device or integrate via API
